Product introduction
Red LDPE
Centre Pull Plugs
The center puller is easy to assemble and remove
Provides dust, moisture and corrosion protection during storage and transportation

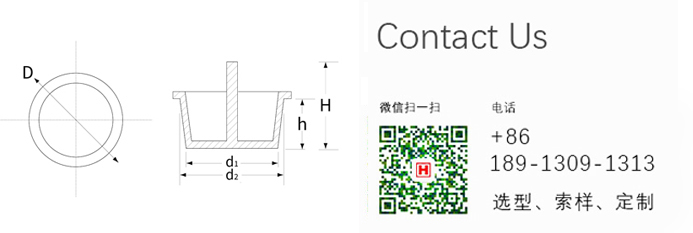

Product drawing
Product specifications are complete, more specification details can contact us: 18913091313
| Number | Thread Metric | Thread UNF | Thread BSP | d1(mm) | d2(mm) | D(mm) | h(mm) | H(mm) |
| HLPZX001 | M8 | 5/16" | - | 6.2 | 7.7 | 11.1 | 9.5 | 20.5 |
| HLPZX002 | - | - | - | 6.8 | 8.5 | 11.9 | 10.3 | 15.9 |
| HLPZX003 | M10 | 7/16" | 1/8" | 8.4 | 10 | 13.5 | 9.5 | 20.5 |
| HLPZX004 | - | 3/8" | - | 9.5 | 10.8 | 14 | 9.5 | 20.5 |
| HLPZX005 | - | - | - | 9.2 | 10.9 | 15.1 | 9.5 | 19.1 |
| HLPZX006 | - | - | - | 10.2 | 11.8 | 15.9 | 9.5 | 19.1 |
| HLPZX007 | M12 | 1/2" | 1/4" | 10.9 | 12.3 | 15.9 | 9.5 | 20.3 |
| HLPZX008 | - | - | - | 11.4 | 13 | 16.7 | 10.3 | 14.3 |
| HLPZX009 | M14 | 9/16" | - | 11.7 | 13.7 | 17.2 | 11 | 22 |
| HLPZX010 | - | - | - | 12.7 | 14.4 | 18.3 | 11.9 | 20.6 |
| HLPZX011 | M16 | 5/8" | 3/8" | 14.2 | 16 | 19 | 11.9 | 22.9 |
| HLPZX012 | - | - | - | 14.7 | 17 | 20.6 | 13.5 | 19.1 |
| HLPZX013 | - | - | - | 15.5 | 17.7 | 21.3 | 13.5 | 19.8 |
| HLPZX014 | M20 | 3/4" | - | 16.4 | 18.3 | 22.2 | 12.3 | 23.5 |
| HLPZX015 | - | 13/16" | 1/2" | 17.8 | 20 | 23.8 | 13.7 | 24.5 |
| HLPZX016 | - | - | - | 18.5 | 21 | 25.4 | 15 | 21.3 |
| HLPZX017 | M24 | 7/8" | 5/8" | 21.3 | 23.2 | 27 | 15.9 | 26.9 |
| HLPZX018 | - | - | - | 22.1 | 24.7 | 28.5 | 19.1 | 25.4 |
| HLPZX019 | - | 1” | - | 22.5 | 25.5 | 28.9 | 17.8 | 29 |
| HLPZX020 | M28,M30 | 11/8" | - | 24.7 | 27.7 | 32 | 19 | 30 |
| HLPZX021 | - | - | - | 24.6 | 27.7 | 31.8 | 19.8 | 26.2 |
| HLPZX022 | - | - | - | 26.1 | 29.1 | 34 | 19.1 | 25.4 |
| HLPZX023 | - | - | - | 27.8 | 31 | 35.8 | 19.8 | 25.4 |
| HLPZX024 | - | - | - | 29.2 | 32.7 | 39.4 | 19.1 | 25.4 |
| HLPZX025 | - | - | - | 32.8 | 33.2 | 38.1 | 19.8 | 25.4 |
| HLPZX026 | - | - | - | 33.3 | 37.2 | 41.2 | 19.1 | 25.4 |
| HLPZX027 | - | - | - | 34.1 | 38.8 | 44.5 | 22.4 | 25.4 |
| HLPZX028 | - | - | - | 36.9 | 40.7 | 44.5 | 19.1 | 25.4 |
| HLPZX029 | - | - | - | 41 | 44.1 | 48.4 | 18.3 | 28.6 |
| HLPZX030 | - | - | - | 45.9 | 49.2 | 54.9 | 25.4 | 31.8 |
| HLPZX031 | M52 | - | - | 48.2 | 52.7 | 57.1 | 25.4 | 26.4 |
| HLPZX032 | M58,M60 | - | 2” | 55 | 61 | 65 | 25 | 26 |
| HLPZX033 | M62 | - | - | 59.3 | 67.3 | 70.6 | 30.7 | 31.5 |
| HLPZX034 | - | - | - | 67.4 | 70.2 | 74.6 | 25 | 26 |
