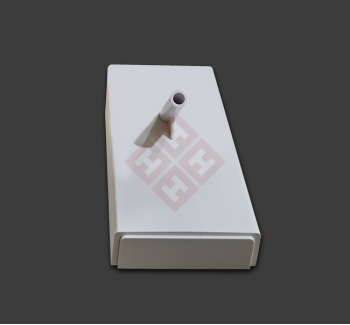

Household appliance shell injection mold is through injection molding process, plastic raw materials into the mold cavity, after cooling and curing to obtain a specific shape and size of the special mold.

1. Product function

The shape of the shell is precisely shaped to ensure the dimensional accuracy and appearance quality of the shell, and to achieve efficient mass production to meet the needs of large-scale production in the home appliance industry.

2. Applicable performance

It is suitable for a variety of household appliances, such as TV shell, air conditioner outer and inner shell, refrigerator shell, washing machine shell, etc.

3. Mold design

a. First of all, product analysis, according to the shape, size, functional requirements of the home appliance shell to determine the basic structure and size of the mold.

b. Then carry out a detailed mold structure design, including the design of various parts of the cavity, core, gate system, cooling system and release mechanism, and carry out the strength and stiffness calculation of the mold to ensure that the mold will not be deformed or damaged during the injection process.

4. Processing and manufacturing

a. Usually adopt numerical control machining technology, such as numerical control milling, numerical control EDM, etc. For key components such as cavities and cores, CNC milling can accurately produce complex shapes.

b. After the completion of processing, it is necessary to assemble and debug each part of the mold. The assembly process should be carried out in strict accordance with the design requirements to ensure the matching accuracy of each part.
